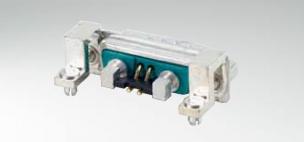

MicroTCA Power modul input connectors
Plug connector – Solder pin – Angled – Precision machined contacts – Dual port style – Through hole solder type
- Standard version according to MTCA.0 specification
- Design 7W2 for -48 -60 V Power modul
- Design: 2 power contacts 24 A 2 signal contacts per port
- Mounting styles:
- Mounting bracket with PCB clip, 4-40 UNC threaded insert
- Mounting bracket with PCB clip, 4-40 UNC hex bolt
- Note for 9W4 product please contact factory
MicroTCA Power modul input connectors
Plug connector – Solder pin – Angled – Precision machined contacts – Dual port style – Filter version – Through hole solder type
- Standard version according to MTCA.0 specification
- Filtered power contacts with 54 nF or 10 nF Capacitance
- Signal contacts are not filtered
- Design 7W2 for -48 -60 V Power modul
- Design: 2 power contacts 24 A 2 signal contacts per port
- Mounting styles:
- Mounting bracket with PCB clip, 4-40 UNC threaded insert
- Mounting bracket with PCB clip, 4-40 UNC hex bolt
- Note for 9W4 product please contact factory
MicroTCA Power modul input connectors
Plug connector – SMT version – Suitable for reflow – Angled – Precision machined contacts – Dual port style
- SMT Version with contact spacer plate
- Design 7W2 for -48 -60V power modul
- Design: 2 power contacts 35 A 2 signal contacts per port
- Mounting styles:
- Mounting bracket with PCB clip, 4-40 UNC threaded insert
- Mounting bracket with PCB clip, 4-40 UNC hex bolt
- Note for 9W4 product please contact factory
MicroTCA Power modul input connectors
Plug connector – Solder pin – Angled – Precision machined contacts – Through hole solder type
- Single port version for MicroTCA PCB layout
- Design 7W2 for -48 -60 V power modul
- Design: 2 power contacts 24 A 2 signal contacts
- Mounting styles:
- Mounting bracket with PCB clip, 4-40 UNC threaded insert
- Mounting bracket with PCB clip, 4-40 UNC hex bolt
- Note for 9W4 product please contact factory
MicroTCA Power modul input connectors
Plug connector – Solder pin – Angled – Precision machined contacts – Filter version – Through hole solder type
- Single port version for MicroTCA PCB layout
- Filtered power contacts with 54 nF or 10 nF capacitance
- Signal contacts are not filtered
- Design 7W2 for -48 -60 V power modul
- Design: 2 power contacts 24 A 2 signal contacts
- Mounting styles:
- Mounting bracket with PCB clip, 4-40 UNC threaded insert
- Mounting bracket with PCB clip, 4-40 UNC hex bolt
- Note for 9W4 product please contact factory
MicroTCA Power modul input connectors
Plug connector – SMT version – Suitable for reflow – Angled – Precision machined contacts
- Single port SMT version with contact spacer plate
- Design 7W2 for -48 -60 V power modul
- Design: 2 power contacts 35 A 2 signal contacts
- Mounting styles:
- Mounting bracket with PCB clip, 4-40 UNC threaded insert
- Mounting bracket with PCB clip, 4-40 UNC hex bolt
- Note for 9W4 product please contact factory
