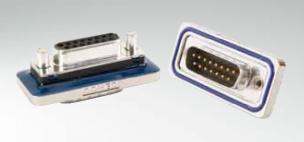

D-SUB Standard – IP67

Solder cup – Precision machined contacts – For wire size AWG 20

• Suitable for wire size AWG 20
• Mounting style: with 4-40 UNC or M3 threaded insert including hex locking bolt
• Quality class 3 (also available in quality class 1)
• Shell: Brass tin plated (stainless steel available on request)
• Nickel plated die-cast frame
• (Black plastic frame on request)

D-SUB Standard – IP67 Solid Body

Solder cup – Precision machined contacts – For wire size AWG 20

• Suitable for wire size AWG 20
• Mounting style: 4-40 UNC threaded insert including hex locking bolt
• Quality class 3 (also available in quality class 1)
• One-piece zinc die-cast nickel plated shell
• IP67 for harsh environments, pressure-proof up to 1.45 PSI
• Higher protection on request

D-SUB Standard – IP67

Solder pin – Angled – .189”/4.8 mm – Precision machined contacts – Metal bracket

• Mounting styles:
  • with mounting bracket and 4-40 UNC or M3 threaded insert including hex locking bolt
  • with mounting bracket, PCB clip and M3 or UNC 4-40 threaded insert including hex locking bolt
• Quality class 3 (also available in quality class 1)
• Shell: Brass tin plated (stainless steel available on request)
• Nickel plated die-cast frame
• (Black plastic frame on request)

D-SUB Standard – IP67

Solder cup – Precision machined contacts – Front mounting – For wire size AWG 20

• Suitable for wire size AWG 20
• Mounting styles:
  • with M3 or 4-40 UNC front spacer
  • with M3 or 4-40 UNC front spacer and rear mounting stud
• Quality class 3 (also available in quality class 1)
• Shell: Brass tin plated (stainless steel available on request)
• Nickel plated die-cast frame
• (Black plastic frame on request)

D-SUB Standard – IP67

Interface adapter – Connector Saver

• Plug to socket adapter
• Mounting style: 4-40 UNC threaded rear spacer including hex locking bolt
• Precision machined contacts
• Quality class 3 (also available in quality class 1)
• Shell: Brass tin plated
• Nickel plated die-cast frame
